Dry Air Systems
As laser cutting machines continue to evolve, cutting processes no longer rely solely on nitrogen and oxygen gases; dry air systems are now increasingly used as well. Cutting with dry air is far more economical compared to nitrogen and oxygen, but certain technical requirements must be met. The dry air must comply with specific standards and must be completely free of oil and moisture. Before reaching the laser cutting head, the air needs to be filtered, dried, and tested with dew point measurements to ensure its quality.
In Forever Dry Air Systems, high-pressure air produced in accordance with ISO standards is used directly as cutting air. This approach eliminates the traditional use of gas cylinders, along with the additional costs of transportation and handling, while also removing the safety risks associated with high-pressure storage. With the optional Dew Point Control Panel, the system guarantees a steady supply of oil-free and dry air to the laser head. Integrated analyzers continuously monitor air quality, and in the event of potential issues such as oil contamination or moisture, the system automatically shuts down the air supply. In this way, we protect the laser cutting machine.
%100 OIL-FREE

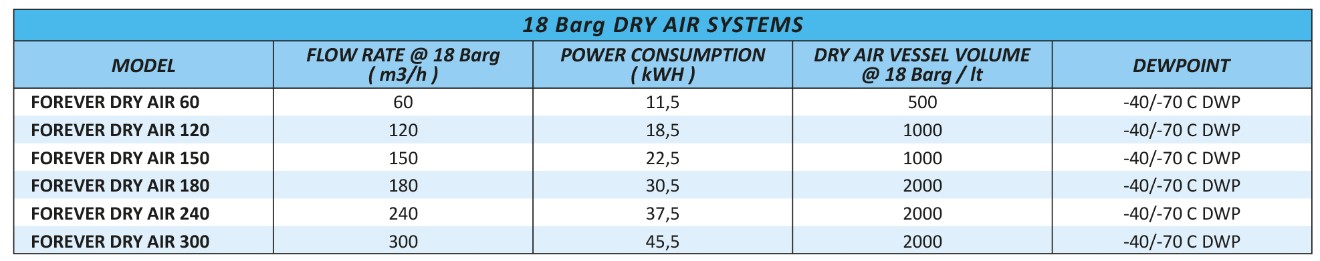

"FOREVER" 18 Barg Dry Air Systems
In Forever 18 Barg Dry Air Systems, unlike conventional 25–40 Barg oil-injected booster compressors, oil-free booster compressors are used. This advanced design prevents problems caused by oil, water, and particle contamination that often occur in compressed air produced by oil-injected boosters. Issues such as overheated lenses, glass, and mirror damage (typically excluded from warranty coverage) are effectively eliminated.
Main Advantages of the FOREVER 18 Barg Dry Air System
- 18 Barg dry and oil-free air
- Economical cutting opportunity
- –40 °C dew point
- Max. 0.003 mg/m³ oil content
- Max. 0.01 ppm particles
- Suitable for 24/7 operation
- Ease of use
- Fully equipped safety system
- Fully automatic operation system
- Fast, and perfect cutting
- 2–4 times faster cutting compared to cutting with O2

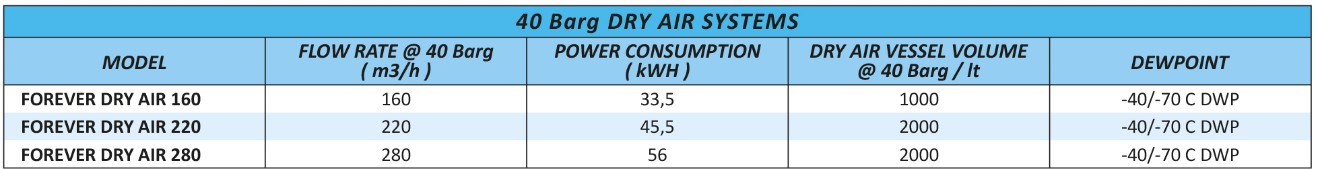

"FOREVER" 40 Barg Dry Air Systems
Forever 40 Barg Dry Air Systems are used with booster compressors to compress air in the 7–10 bar pressure range for laser cutting and plasma cutting in the metal industry. In the plastics industry, they can meet medium and high-pressure requirements with high efficiency for PET blowing and high-pressure gas injection. Our products are systems that ensure continuous high-efficiency operation for 24 hours.
Main Advantages of the FOREVER 40 Barg Dry Air System:
- 40 Barg dry air
- Economical cutting opportunity
- –40 °C dew point
- Max. 0.01 ppm particles
- Suitable for 24/7 operation
- Ease of use
- Fully equipped safety system
- Fully automatic operation system
- Burr-free, fast, and perfect cutting
- 2–4 times faster cutting compared to oxygen cutting
